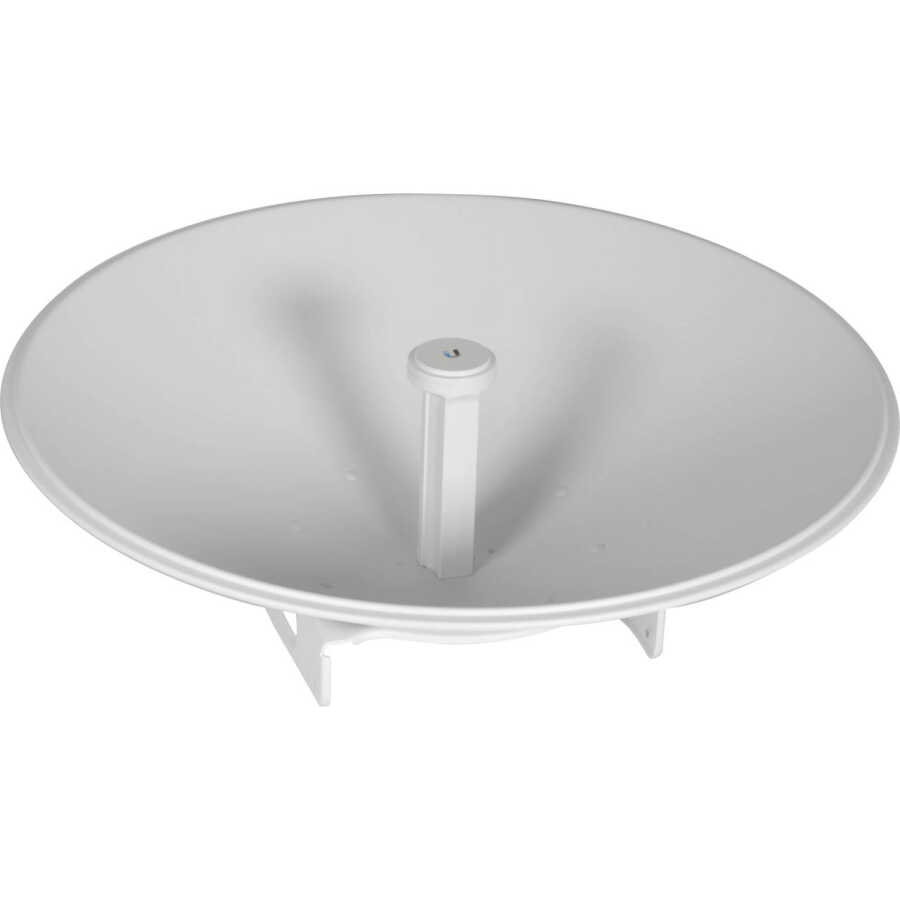

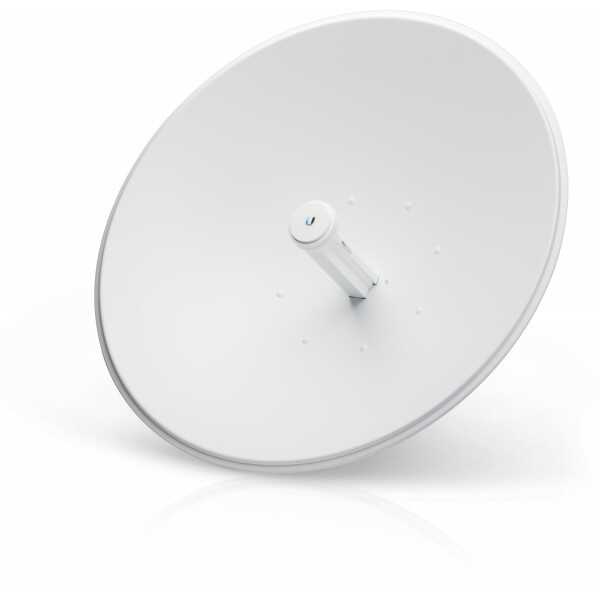

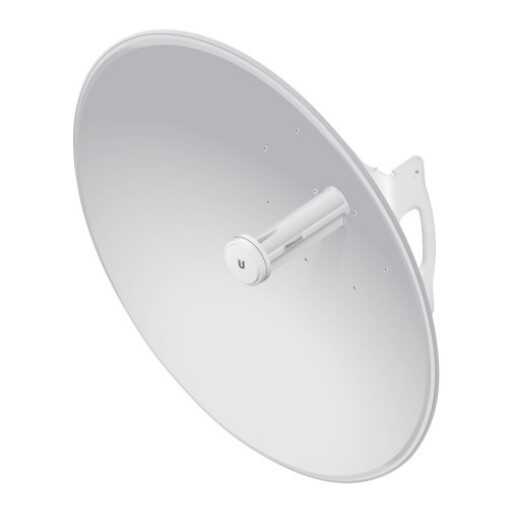

UBNT Ubiquiti Power Beam 5AC-620 PBE-5AC-620
5 GHz Hız 450+ Mbps Veri Aktarımı 30+ km Mesafeye kadar uzaklık.
Integrated Radio Design
Ubiquiti’s InnerFeed™technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.
Ubiquiti's airMAX®engine with custom IC dramatically improves TDMA latency and network scalability.
The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the
high data rates and dense modulation used in airMAX ac technology.
The form factor of the PowerBeam™ac features the highest gain for its size. The PowerBeam ac’s excellent beam directivity provides the best performance in high-noise environments.
Advanced Software Technology
Ubiquiti’s airMAX®technology is proven in millions of deployments worldwide, exhibiting outstanding
performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability,
high throughput and low latency in unlicensed, multipoint networks.
| PBE-5AC-620 System and Regulatory/Compliance | |
| Processor Specs | Atheros MIPS 74Kc, 720 MHz |
| Memory | 128 MB DDR2, 8 MB Flash |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Wireless Approvals | FCC, IC, CE |
| RoHS Compliance | Yes |
| PBE-5AC-620 Physical/Electrical/Environmental | |
| Dimensions | 620 x 620 x 386 mm (24.41 x 24.41 x 15.2') |
| Weight | 6.4 kg (14.11 lb) |
| Power Supply | 24V, 0.5A Gigabit PoE |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Max. Power Consumption | 8.5W |
| Gain | 29 dBi |
| Operating Frequency Worldwide USA | 5150 - 5875 MHz 5725 - 5850 MHz |
| Wind Loading | 872 N @200 km/h (196 lbf @125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal Strength LEDs | Software-Adjustable to Correspond to Custom RSSI Levels |
| Channel Sizes PtP Mode PtMP Mode | 10/20/30/40/50/60/80 MHz 10/20/30/40 MHz |
| Polarization | Dual Linear |
| Enclosure | Outdoor UV Stabilized Plastic |

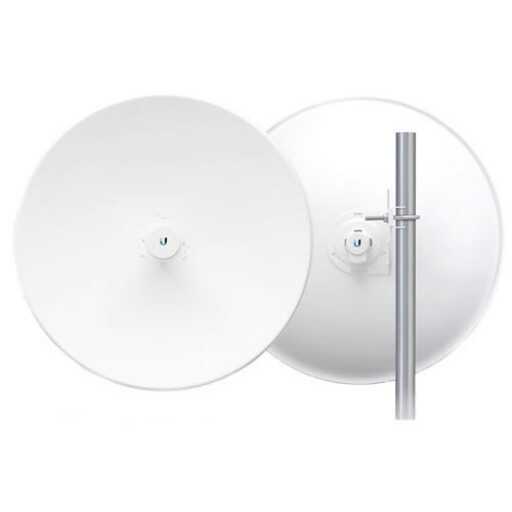

| Mounting | Pole-Mount Kit Included |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | 40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Non-Condensing |
