PBE-5AC-500-ISO

🔧 Technical Specifications

• Model: PBE-5AC-500-ISO

• Frequency Band: 5 GHz

• Antenna Gain: 27 dBi

• Maximum Data Rate: 450+ Mbps real TCP/IP transfer speed

• Ethernet Port: 1 unit 10/100/1000 Mbps Gigabit Ethernet

• Power Supply: 24V, 0.5A Gigabit PoE adapter (included in the package)

• Power Consumption: Maximum 8.5W

• Supported Voltage Range: 20–27V DC

• ESD/EMP Protection: Air/contact: ±24 kV

• LED Indicators: Power, LAN, 4 Signal Strength (configurable via software)

• Cash Register Material: UV stabilized plastic, powder coated SPCC

• Dimensions (with Radome): 564 x 564 x 308 mm

• Weight (Including Assembly): 5.2 kg

• Wind Resistance: 200 mph

• Wind Load: 984 N @ 200 km/h​

🌐 Areas of Use

• Long distance Point to Point (PtP) connections

• Stable connection requirements in high interference environments

• Backbone connections for Internet Service Providers (ISP)

• High-speed internet access in rural and remote areas​

📦 Package Contents

• PowerBeam 5AC 500 ISO device

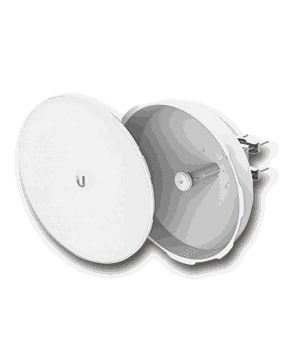

• 500 mm RF insulated reflector and radome

• Assembly apparatuses and accessories

• 24V, 0.5A Gigabit PoE adapter and power cable
