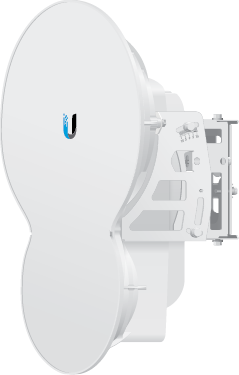

Ubiquiti airFiber AF-24Operating in the 24 GHz unlicensed frequency band, ultra-high capacity, low latencypoint to point (PtP)It is a wireless backhaul device. It offers carrier-class connections and is an ideal solution as an alternative to fiber infrastructure. It is developed for long-distance, high-speed wireless connections in urban or rural areas.
🔌 Connections & Interfaces
1 × 10/100/1000 Mbps Ethernet port
1 × 1 Gbps Fiber (SFP) port
PoE supported (24V, 1.5A GigE PoE adapter)
📡 Wireless Features
Frequency Range: 24.05 – 24.25 GHz
Channel Width: 50 MHz / 100 MHz
Maximum Speed:1.4+ Gbps (full-duplex)
Menzil: 20+ kmuntil high-performance connection
Antenna Gain: 23 dBi + 11 dBi integrated reflector (total 34 dBi)
Technology: Hybrid Division Duplexing (HDD), airFiber protocol
⚙️ Hardware Specifications
Processor: airFiber custom processor
RAM: 64 MB
Power Consumption: Maximum 40W
LED Indicators: Power, Ethernet, Signal, GPS, Status
🌦️ Durability & Environmental Conditions
Weather-resistant sturdy body
Operating Temperature: -40°C ~ +55°C
Wind Resistance: 200+ km/h
IP67 level outdoor protection
🛠️ Areas of Use
High-speed internet backhaul
Intercity and rural area connections
Corporate campuses, data center interconnections
Locations where fiber infrastructure is not possible
📦 Package Contents
AF-24 airFiber Device
airFiber GPS Sync Module
Assembly apparatus
24V, 1.5A PoE GigE power adapter
User manual
