AF60-HD

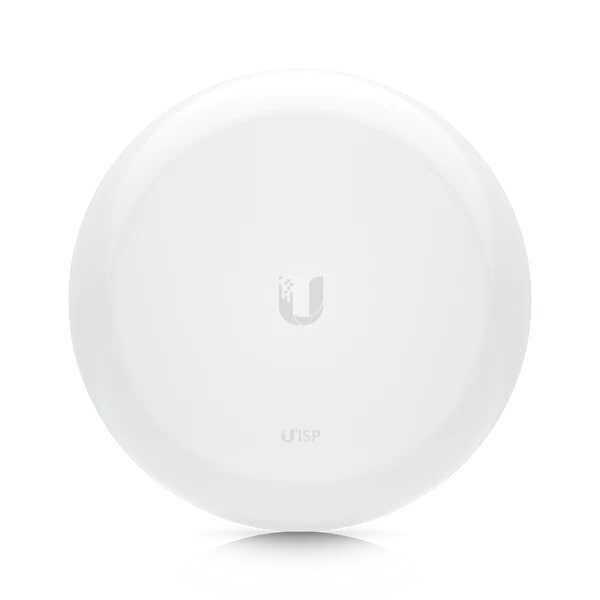

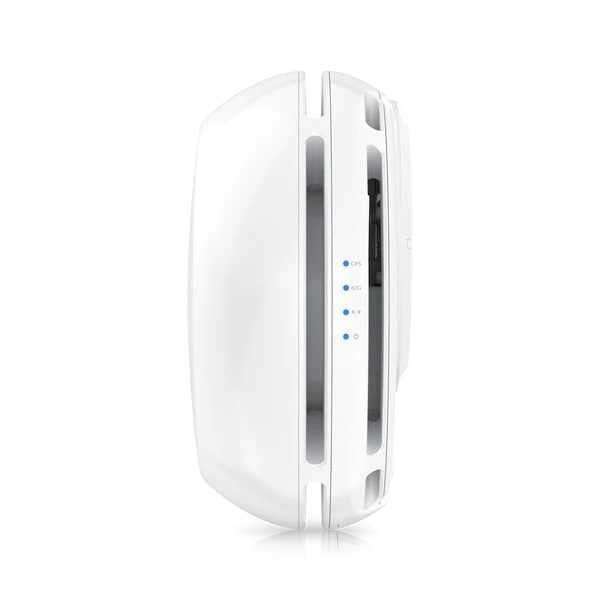

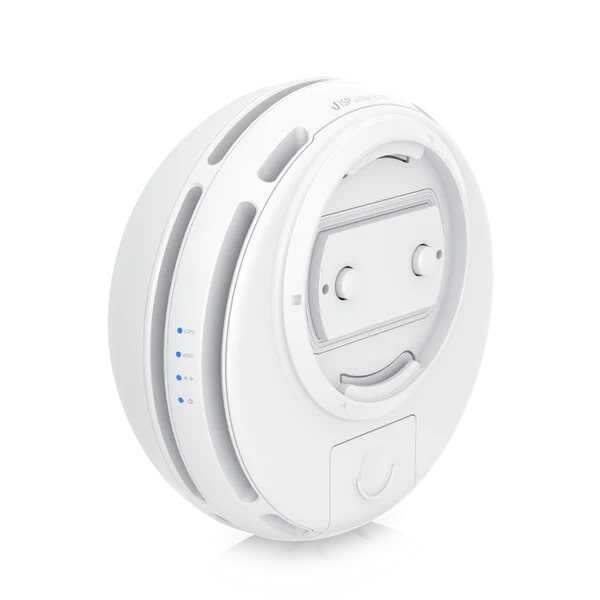

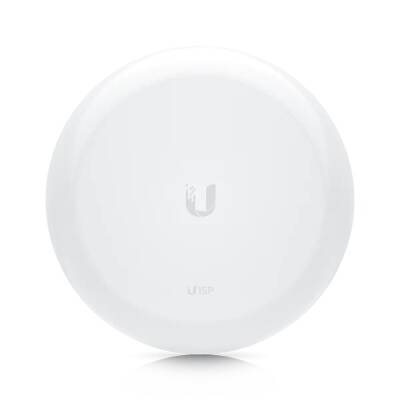

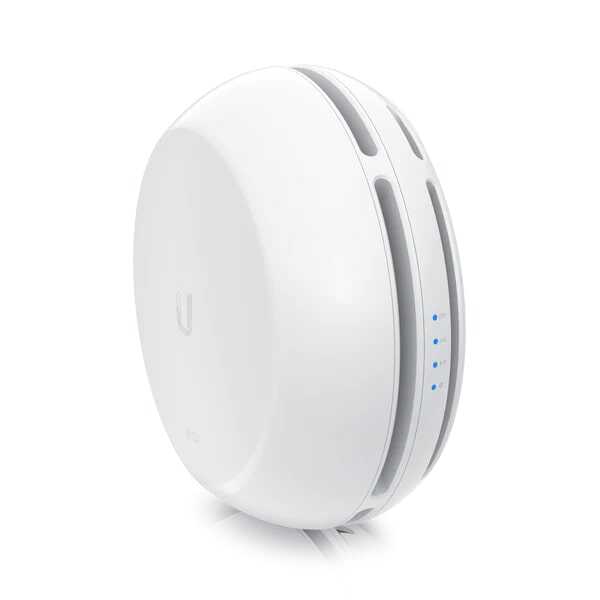

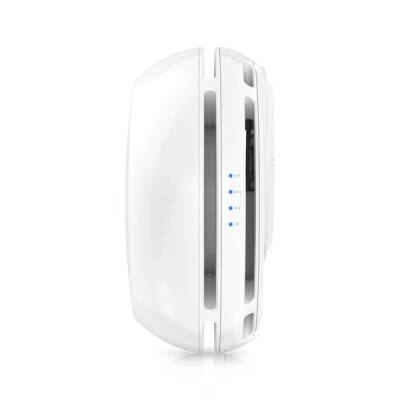

📡 Ubiquiti AF60-HD

airFiber 60 HD, Ubiquiti's60 GHz mmWaveusing technology,high-speed point-to-point (PtP)It is a wireless bridge solution. Specifically,very high bandwidth, low latency, andlong distanceIt is designed for wireless data transmission. The "HD" model,improved antenna design and much higher throughputstands out with.

📶 Wireless Features

• Frequency Range:

  • 57 – 71 GHz (60 GHz mmWave band)

  • 5 GHz backup connection (failover) desteği

• Wireless Standards:

  • IEEE 802.11ay (60 GHz)

  • IEEE 802.11ac (5 GHz backup channel)

• Maximum Actual Data Rate (Throughput):

  • 6+ Gbps (duplex, total)

  • Net data transmission capacity: Approximately3.5 Gbps

• Connection Distance: Up to 2+ kilometers(line of sight – LoS)

• MIMO Structure:2x2 MIMOBeamforming and automatic alignment supported.

📡 Antenna Specifications

• Antenna Type:High-gain 60 GHz directional parabolic antenna

• Gain:43 dBi (60 GHz band)

• Antenna Size:Çap: ~400 mm

🔌 Hardware Specifications

• Ethernet Port:

  • 1x 10G SFP+

  • 1x 2.5GbE RJ45 (PoE input)

  • 1x 1GbE RJ45 (Management port)

• Power Input:

  • 802.3bt (PoE++)– minimumPoE 50V, 1.2A önerilir

  • Power Consumption: ~25–30W

• Processor and RAM:

  • Ubiquiti proprietary processor architecture

  • High-performance network chip

🛠️ Physical Properties

• Device Dimensions:Yaklaşık 425 x 425 x 275 mm

• Ağırlık:~4.8 kg(including mounting fixtures)

• IP Protection Class:IP67- resistant to harsh external environmental conditions

• Wind Resistance:Up to 200 km/h

🌐 Management and Software Features

• Management Platform:

  • airOS LTU

  • UISP (UNMS) desteği

• Supported Features:

  • Dynamic frequency selection (DFS)

  • OTA (over-the-air) update

  • Spectrum analyzer

  • SNR monitoring, throughput test

  • VLAN, QoS, SNMP support

📦 Box Contents

• airFiber 60 HD device

• Direct mounting apparatus

• Waterproof Ethernet feedthrough device

• PoE adapter(not included in most packages, may need to be purchased separately)

🎯 Areas of Use

• High-speed building-to-building connections with fiber alternatives

• WISP backhaul connection

• Wireless bridging within industrial facilities or campuses

• UHD video surveillance infrastructures

• Low latency dedicated connection solutions (VoIP, video streaming)
