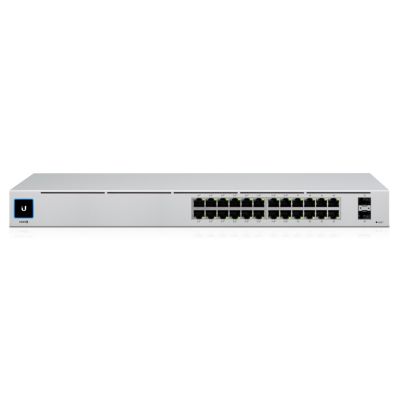

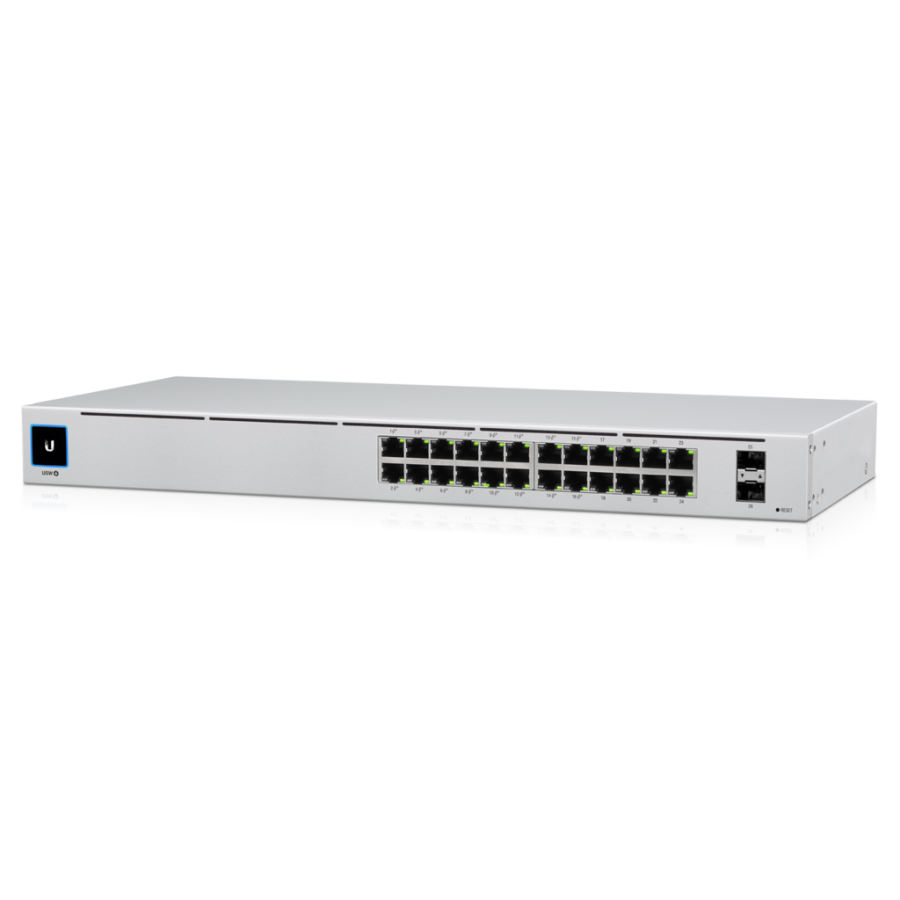

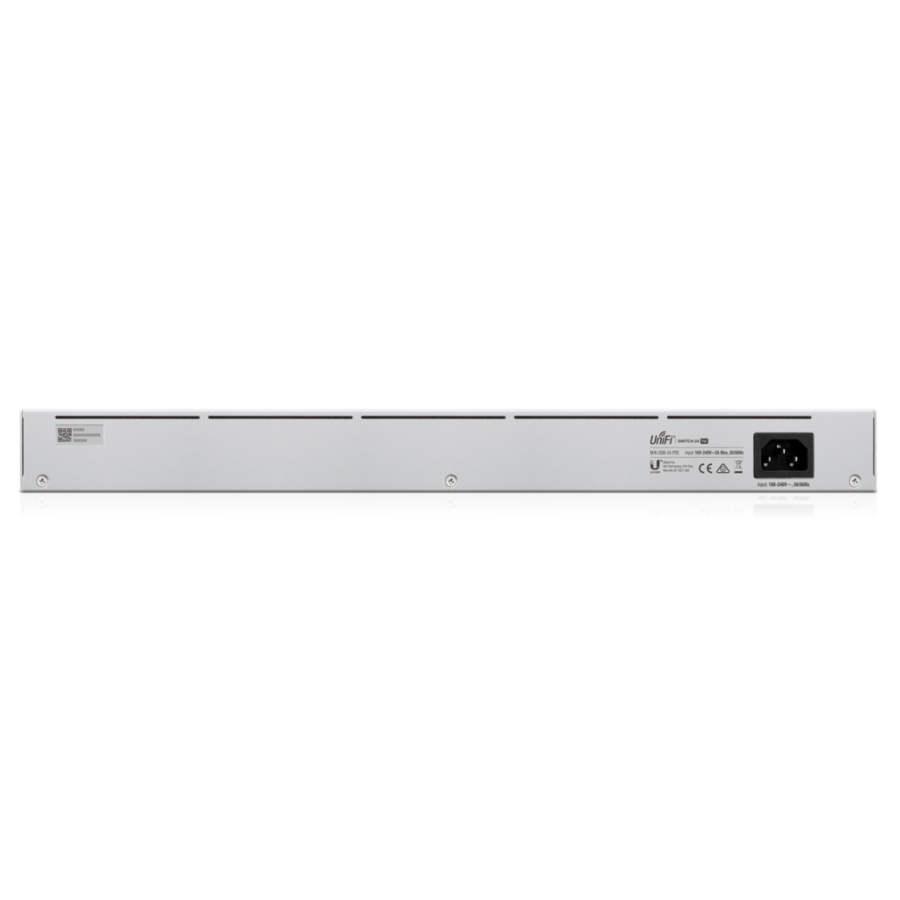

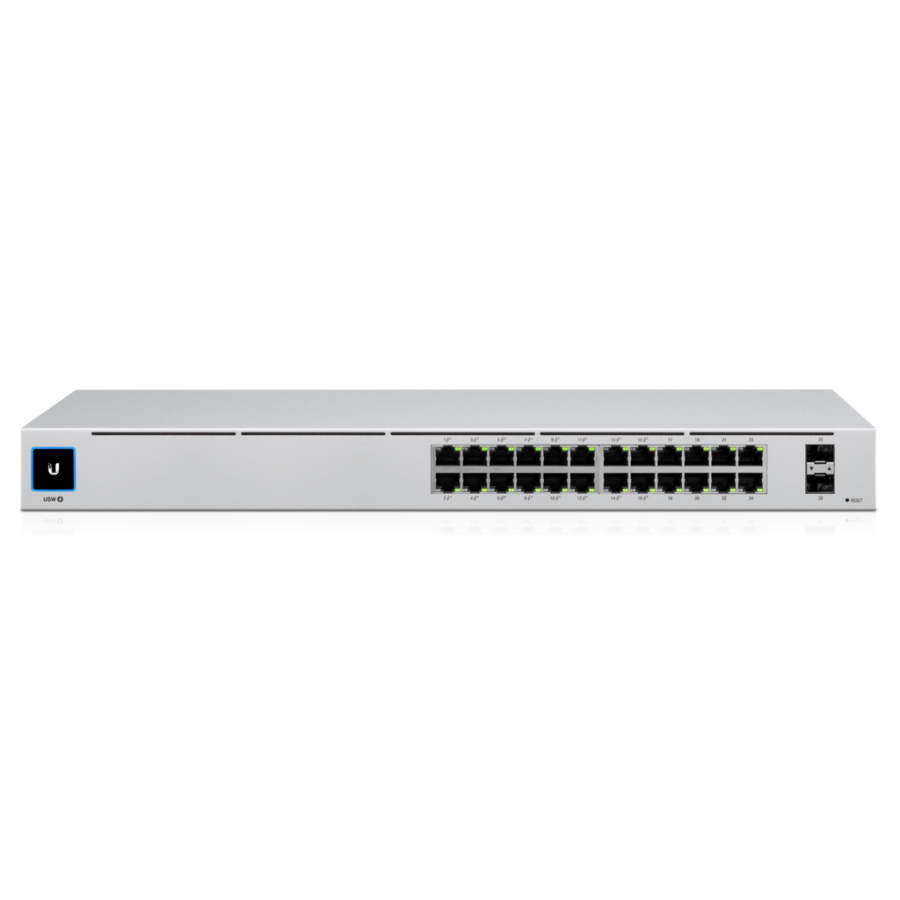

USW-24-POE

🌐 Ubiquiti USW-24-POE – Technical Information

USW-24-POE, Ubiquiti Networks' UniFi Switch seriesa 24-portManaged switchIt is a (manageable key) device. This model,PoE (Power over Ethernet)It provides both power and data transmission to devices by offering support.UniFi ControllerThis switch, fully compatible with, especiallyon internal networks, on security cameras ve Wi-Fi access pointsIt is ideal for meeting PoE requirements.

🔌 Port Features

• Total Port Count:24 x 10/100/1000 Mbps Ethernet port

• PoE Ports:

  • 24 x 10/100/1000 Mbps Ethernet port(All ports support PoE+)

  • PoE+ (802.3at) çıkışı: 250W total PoE power

  • It can power PoE-supported devices (e.g.,UniFi AP, IP cameras)

• SFP Ports:2 x 1G SFP port(For fiber connections)

• PoE Power:250W (Toplam)

🛠️ Hardware Specifications

• Switch Type:Layer 2+ Managed Switch

• Ethernet Speed:Gigabit Ethernet(10/100/1000 Mbps)

• Yönetim:

  • UniFi ControllerManagement with software

  • Web UI, mobile applicationwith user-friendly management interface

• Max. Power Consumption:400W

• Input Power:100-240V AC, 50-60Hz

🌍 Physical Properties

• Boyutlar:44.5 x 26.5 x 4.4 cm(W x D x H)

• Ağırlık:3.75 kg

• Montaj:19-inch rackcan be used with the assembly

🛡️ Security Features

• Port Gun and VLAN:Port gunwith port-based access controlVLAN (Virtual Local Area Network) desteği

• QoS (Quality of Service):Layer 2 QoSwith priority data transmission

• Advanced Security:

  • 802.1X port security

  • MAC address-based access control

📊 Management and Software Features

• Management Platform:

  • UniFi Network ControllerEasy management over

  • Web interface ve mobile applicationaccessible via

  • Real-timenetwork monitoring and performance reports

• Software Features:

  • VLAN, LAG (Link Aggregation), STP (Spanning Tree Protocol)

  • Link Layer Discovery Protocol (LLDP)

  • Port mirroring, PoE schedulingsuch advanced features

🌟 Areas of Use

• Large offices, corporate networks ve industrial facilities

• IP cameras, Wi-Fi access points ve VoIP phonesfor power and data transmission

• Security systems, IoT devices ve video conferencing systemsNetwork structures that provide PoE support in applications such as

📦 Box Contents

• USW-24-POE Switch

• Rack Mounting Kits

• Power Cable

• User manual
