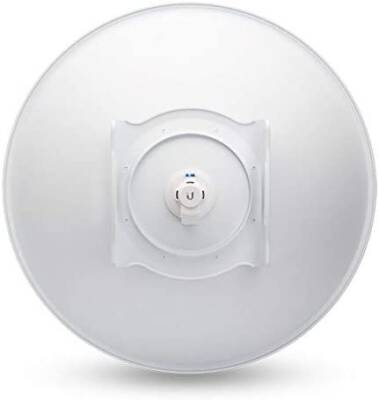

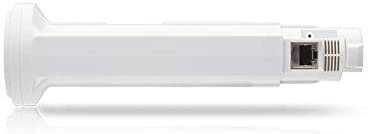

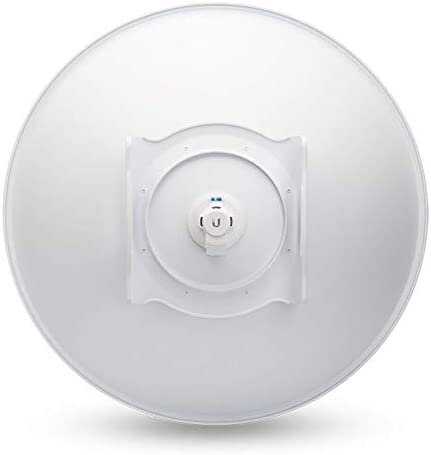

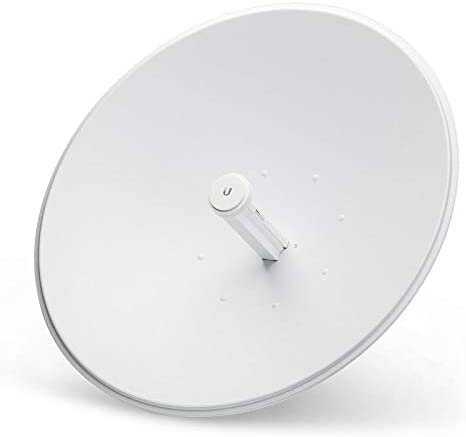

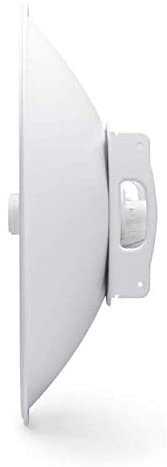

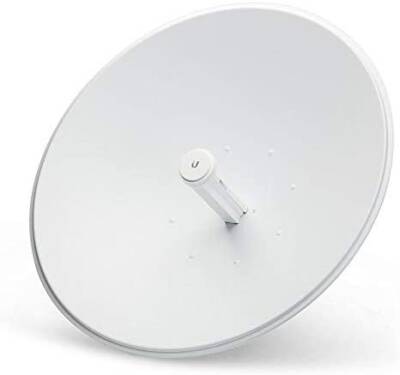

📡 Ubiquiti PBE-M5-620

📝 Overview

PBE-M5-620, long rangePoint-to-Point (PTP)designed for connections, high gainIt is a parabolic outdoor antenna..

• Frekans:5 GHz

• Kazanç:27 dBi

• Intended Use:PTP, PTMP applications, open field data transmission

• Montaj:With easy assembly kits, you can connect directly to your device.

⚙️ Technical Specifications

📡 Frequency & Signal

• Frequency Range:5150 – 5875 MHz

• Kazanç:27 dBi

• 3 dB Beamwidth: 6°

• Body Type:Parabolic reflector

🔄 Polarization & Performance

• Polarizasyon:Vertical or Horizontal (MIMO supported)

• VSWR:≤ 1.5:1

• Wind Resistance:200 km/h

🔧 Hardware & Materials

• Malzeme:Aluminum body, ABS plastic coating

• Montaj:Apparatus included for mounting on a pole or wall.

• Device Compatibility:Fully compatible with the Ubiquiti NanoStation, Rocket, or PowerBeam series.

🚀 Usage Scenario

• Long Range PTP Connections:Stable connection between 20 km and 50 km

• Open Area PTMP Applications:Data transmission, ISP solutions

• MIMO Supported Networks:Fast and reliable wireless communication
