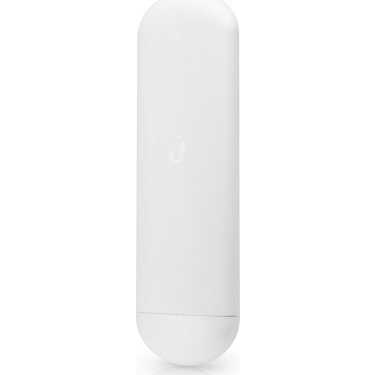

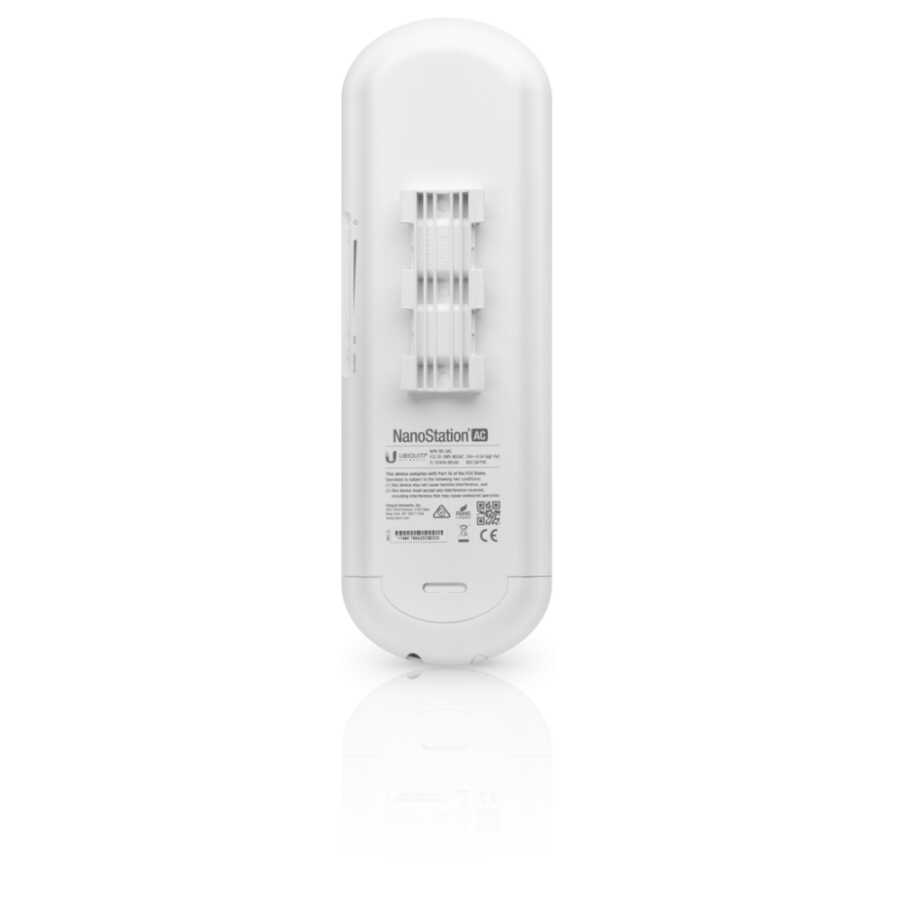

📡 NS-5AC – NanoStation 5AC High Performance CPE
Ubiquiti NanoStation 5AC (NS-5AC), is a compact and powerful outdoor CPE device operating in the 5 GHz frequency band. It offers higher speed and broader coverage with high-performance airMAX AC technology. It is a wireless connection solution suitable for homes, offices, or small businesses, with easy installation.
🔌 Connections & Ports
1 × 10/100/1000 Mbps Gigabit Ethernet port
Easy power connection with passive PoE support (24V)
Plug and play quick setup
📡 Wireless Features
Frequency Range: 5150 – 5875 MHz
Antenna Gain: 16 dBi
airMAX AC technology delivers high speed and low latency.
Increased data transfer capacity with 2x2 MIMO
Channel Width: 20 / 40 / 80 MHz
More stable signal with beamforming support
⚙️ Hardware Specifications
560 MHz Atheros MIPS processor
64 MB DDR2 RAM, 8 MB flash memory
Maximum power consumption: 8W
LED indicators: Power, LAN, Signal status
🌦️ Durability & Environmental Conditions
IP54 certified water and dust protection
UV resistant, durable outdoor design
Operating temperature: -40°C to +70°C
Wind resistance: 200 km/h
🛠️ Advanced Features
airOS AC operating system with advanced management and settings
QoS (Quality of Service) support with traffic prioritization
Advanced spectrum analysis and interference management
Secure connection with VLAN and security protocols
Power transfer to other devices with PoE passthrough support.
🛠️ Areas of Use
High-performance outdoor wireless internet access
Expansion of home and small office networks
Usage as CPE in WISP and corporate networks
Wireless connection of IP cameras and IoT devices
📦 Package Contents
NanoStation 5AC device
Assembly apparatuses
24V PoE adapter
Power cable
User manual
