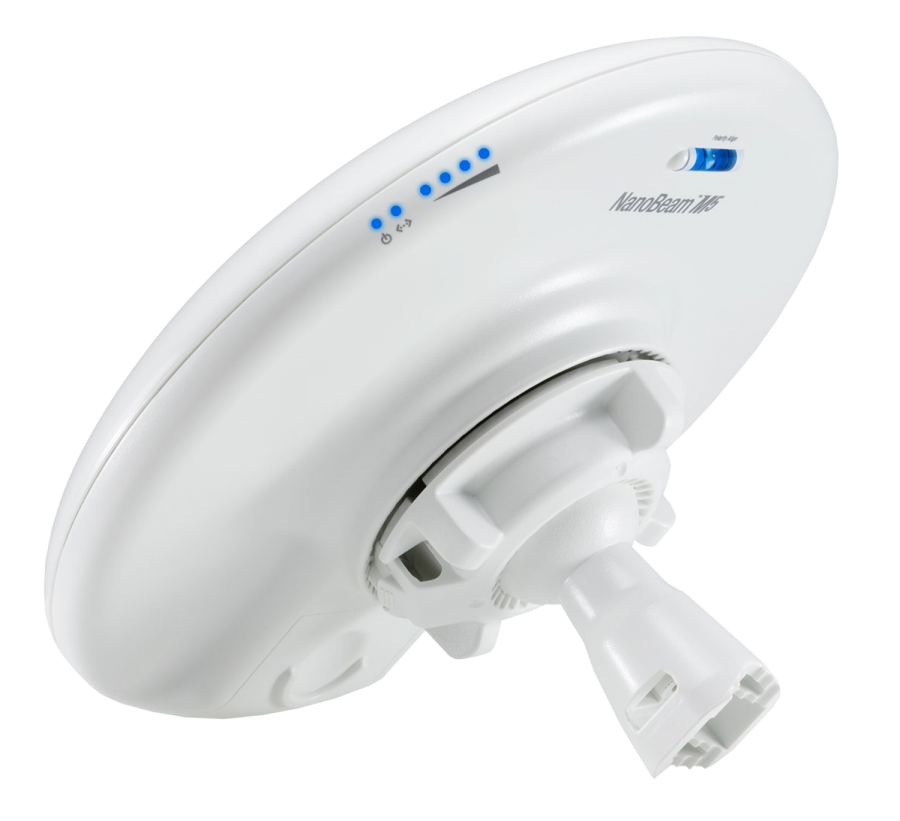

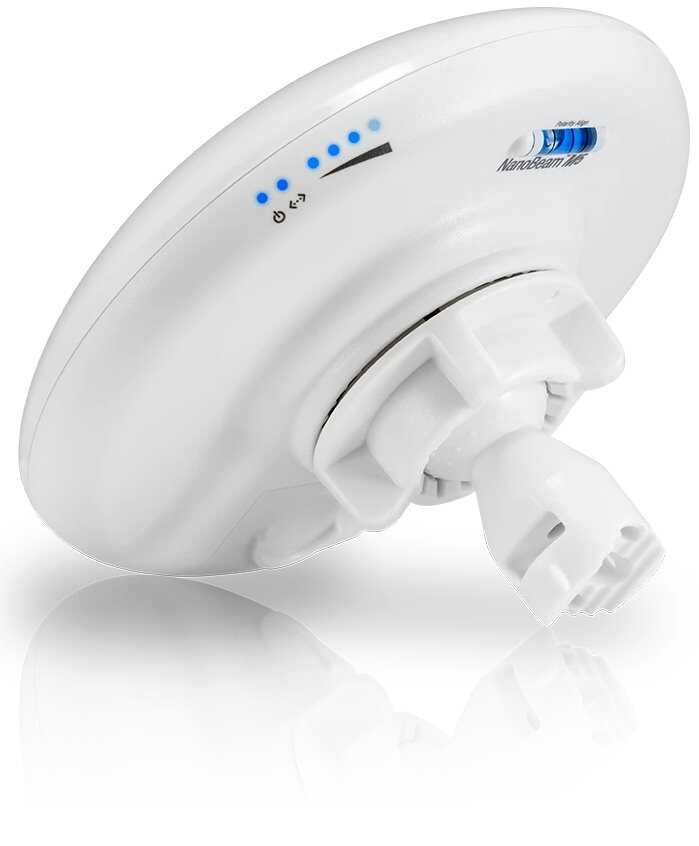

NBE-M5-16 NANOBEAM, 2X2 MIMO, 5 GHZ, 16 DBI

📡 General Features

• Model: NBE-M5-16

• Frequency Range: 5 GHz (5170 – 5875 MHz)

• Antenna Gain: 16 dBi

• Maximum Data Rate: 150+ Mbps

• Maximum Range: 15+ km

• Modülasyon: 2x2 MIMO-OFDM

• Channel Width: 5/8/10/20/30/40 MHz

• Polarizasyon: Bilinear

• Operating System: airOS

• Management Software: airView, airControl​

🔧 Hardware Specifications

• İşlemci: Atheros MIPS 74Kc, 560 MHz

• Bellek: 64 MB DDR2 RAM, 8 MB Flash

• Network Interface: 1 x 10/100 Mbps RJ-45 Ethernet port

• Power Method: Passive PoE (4, 5+; 7, 8 return)

• Power Supply: 24V, 0.5A PoE adapter (included)

• Supported Voltage Range: 20 – 27V DC

• Maximum Power Consumption: 6W​

🛠️ Physical and Environmental Features

• Boyutlar: 140 x 140 x 54 mm

• Ağırlık: 320 g

• Body Material: UV stabilized outdoor plastic

• Montaj: Direct mounting kit included, wall mounting optional.

• Wind Load: 21.4 N @ 200 km/h

• Wind Resistance: 200 km/h

• Operating Temperature: -40°C to 70°C

• Working Moisture: 5% to 95% (non-condensing)

• ESD/EMP Protection: ±24 kV air/contact

• Sertifikalar: CE, FCC, IC, RoHS​

📦 Box Contents

• 1 x NanoBeam M5 16 dBi device

• 1 x 24V, 0.5A PoE adapter

• 1 x Pole mounting kit (metal clamp and ball joint mounting part)

• 1 x Quick Start Guide
