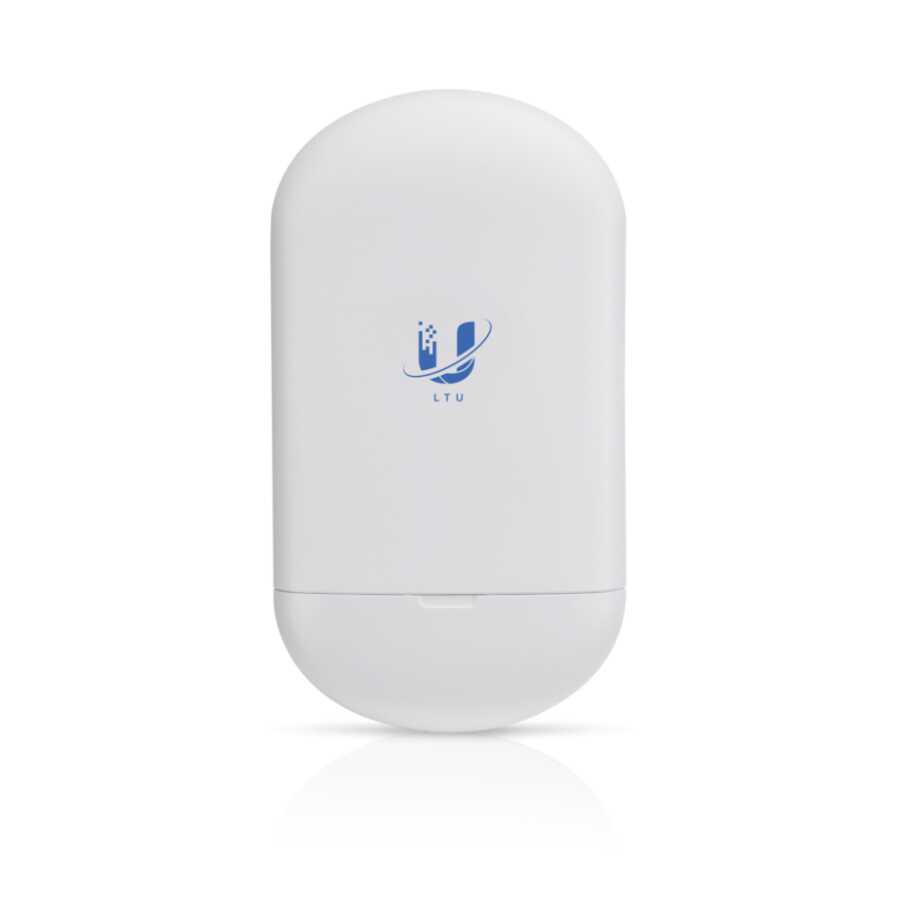

📡 Ubiquiti LTU-Lite

📝 Overview

• CPE (Customer Premises Equipment) cihazı.

• 5 GHz LTU technology(AirMax AC replaced by the new generation Ubiquiti LTU protocol).

• Private TDMA-based LTU protocolThanks to it, lower latency and higher throughput.

• Ideal for point-to-multipoint (PtMP) scenarios.

• Small and lightweight design.

⚙️ Hardware Specifications

• Frequency Range:5.150 – 5.875 GHz

• Channel Width:10 / 20 / 30 / 40 / 50 MHz (adjustable)

• Max. Total Capacity:600+ Mbps (theoretical)

• Max. Modulation:Support up to 4096-QAM

• Anten:13 dBi internal panel antenna

• Beam Angle:~90° (H-plane) × 45° (V-plane)

• İşlemci:Special Ubiquiti LTU chip

• Bellek:Built-in, high-performance RF processor

🔌 Connection

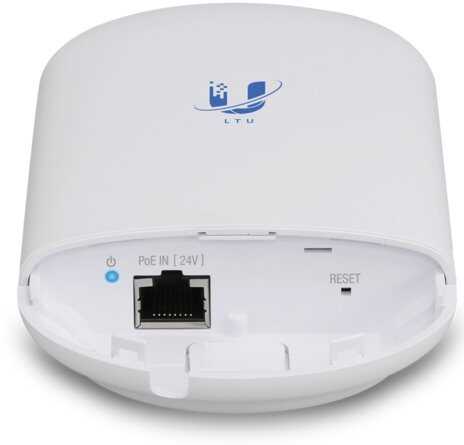

• Ethernet Port:1 × 10/100/1000 Mbps RJ45

• Besleme:

  • 24V Passive PoE (Power over Ethernet)

  • Maximum Power Consumption: ~8.5 W

🔒 Security & Management

• WPA2 AES encryption

• Web interface + Ubiquiti Network Management System (UNMS) support

• AirControl & LTU Configuration support

• VLAN / QoS features

📐 Physical Properties

• Boyut:102 × 102 × 54 mm

• Ağırlık:180 g

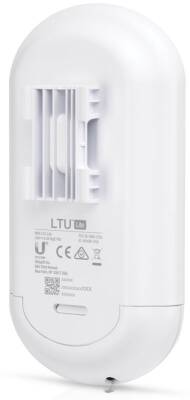

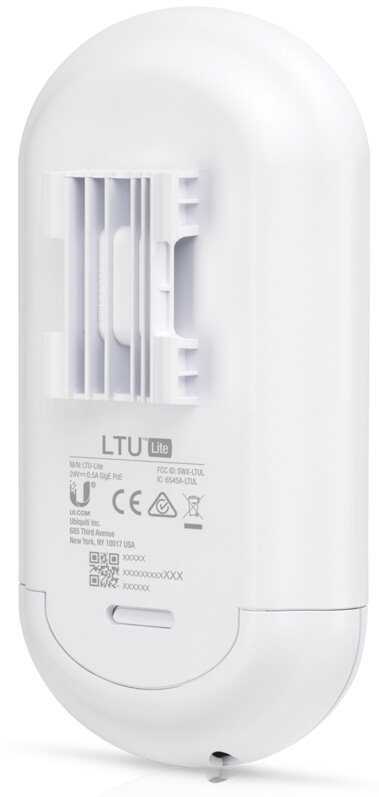

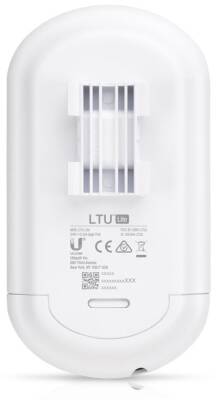

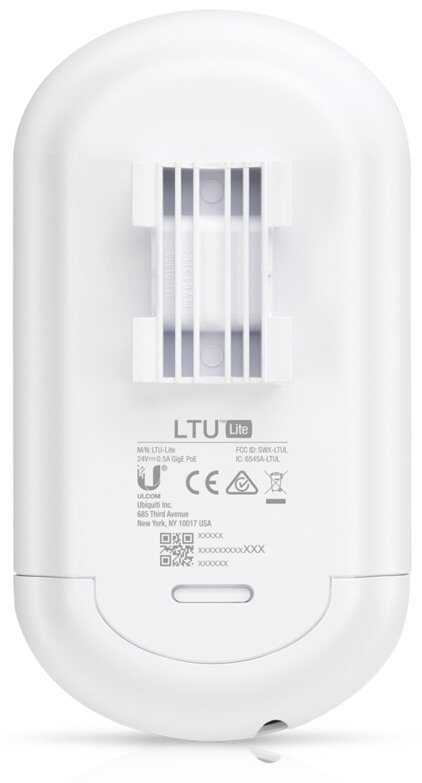

• Montaj:With pole and wall mounting bracket

• Operating Temperature:-40 °C ~ +55 °C

• Sertifika:IP55 (resistant to outdoor conditions)

🚀 Usage Scenario

• The infrastructure set up by ISPs to provide wireless internet to end usersCPE endpoint device.

• In the 5 GHz bandhigh speed – low latency bağlantılar.

• Especially internet distribution in rural areas.
