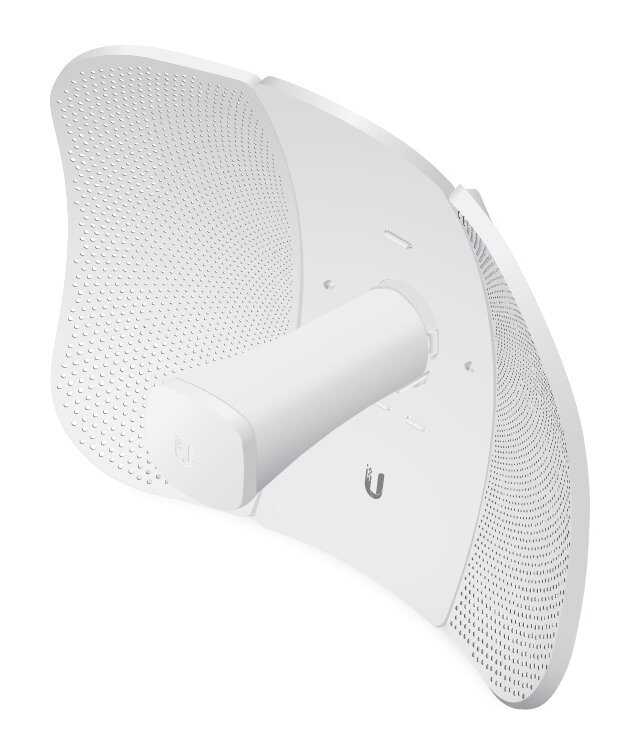

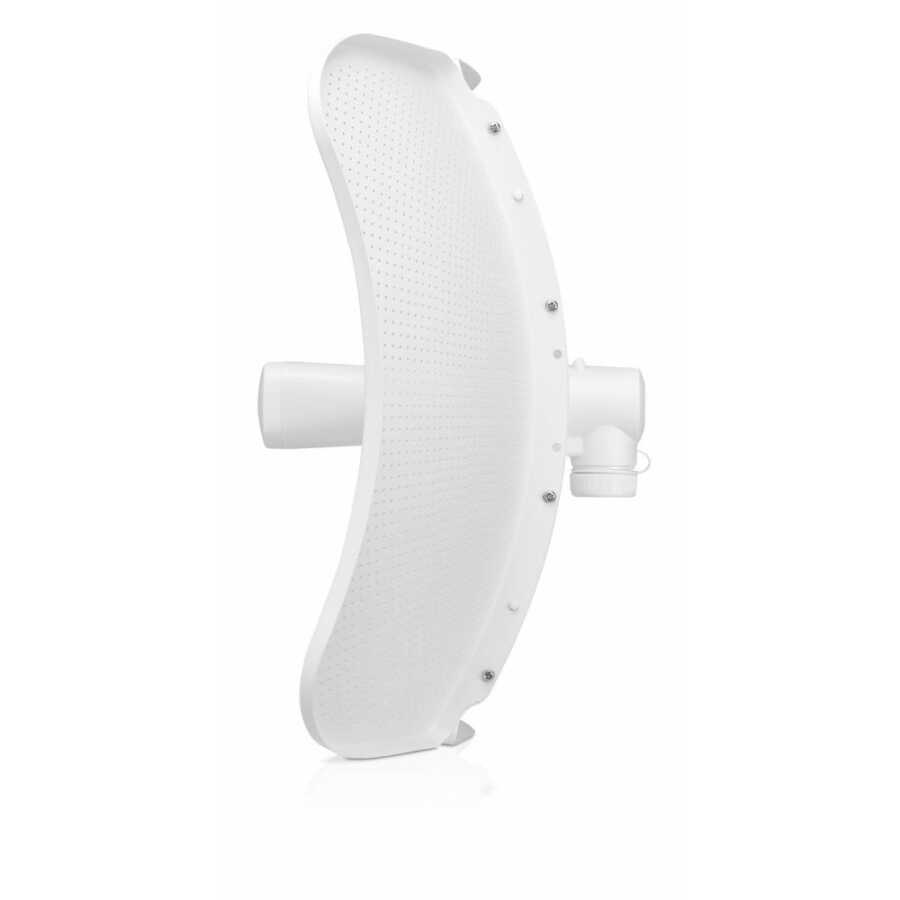

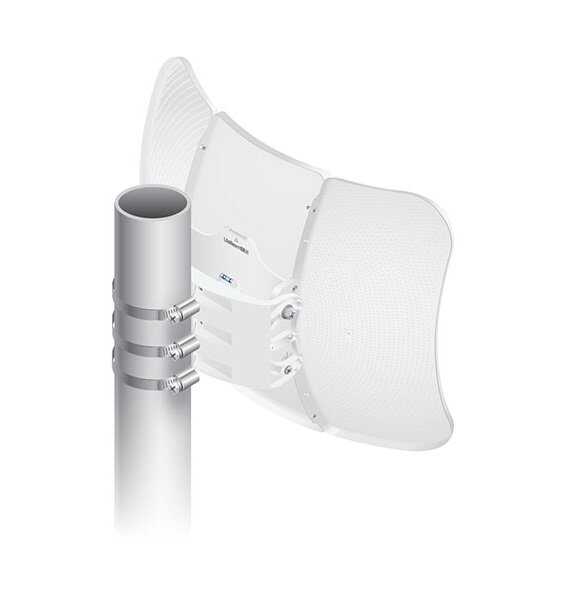

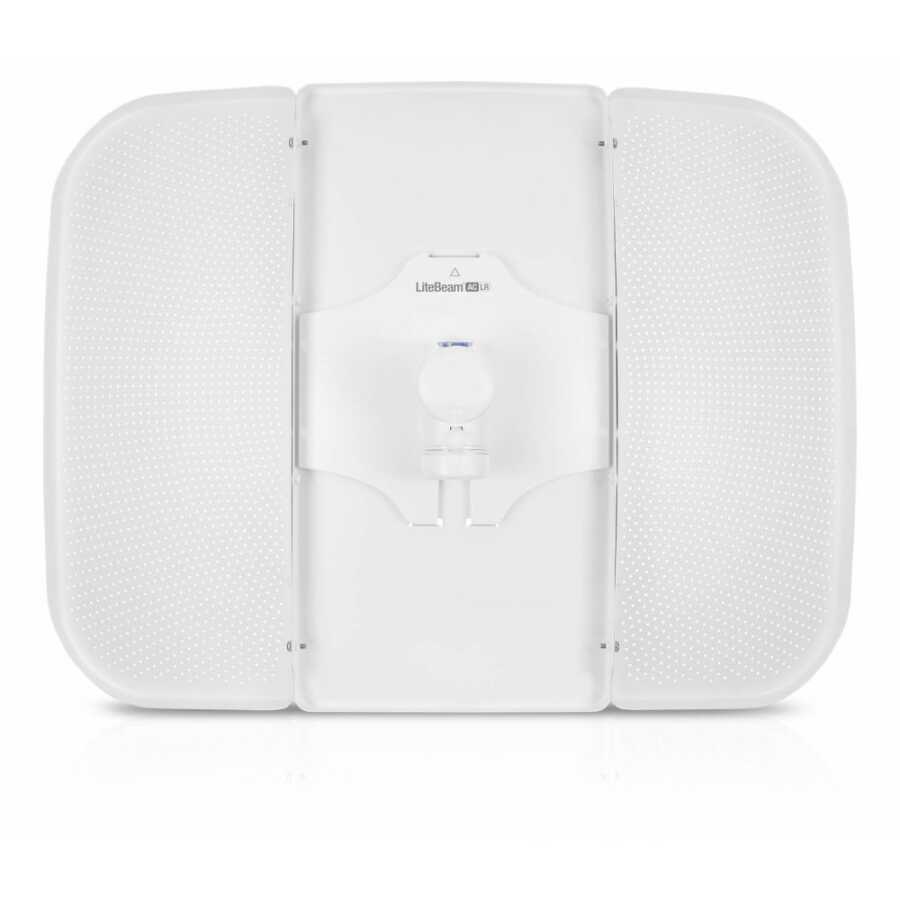

LBE-5AC-LR

​Ubiquiti LiteBeam 5AC Long-Range (LBE-5AC-LR) is a high-performance and cost-effective CPE (Customer Premises Equipment) device designed for long-range wireless connections. Thanks to airMAX AC technology, data transfer speeds of 450 Mbps and above can be achieved over distances of 25 km and beyond in the 5 GHz band.​

📡 Basic Technical Specifications

• Wireless Standard: airMAX AC (802.11ac)

• Frequency Range: 5150 – 5875 MHz (Worldwide)

• Antenna Gain: 26 dBi directional antenna

• Maximum Output Power: 25 dBm

• Actual Data Rate: 450+ Mbps

• MIMO: 2x2 MIMO technology

• Channel Width:

  • PtP Mode: 10/20/30/40/50/60/80 MHz

  • PtMP Mode: 10/20/30/40 MHz

• Network Interface: 1 x 10/100/1000 Mbps Gigabit Ethernet port

• İşlemci: MIPS 74Kc

• RAM: 64 MB DDR2​

⚙️ Hardware and Physical Features

• Boyutlar: 512.5 x 385.75 x 258.3 mm

• Ağırlık:

  • Assembly Included: 1.735 kg

  • Excluding Assembly: 1.360 kg

• Power Consumption: Maximum 7 W

• Power Supply: 24V, 0.3A Gigabit PoE adapter (included in the package)

• PoE Support: Passive PoE (input only)

• ESD/EMP Protection: ±24 kV (air and contact)

• Operating Temperature: -40°C to 70°C

• Operating Humidity Ratio: 5% to 95% (non-condensing)

• Wind Resistance: Up to 200 km/h speed

• Wind Load: 550 N @ 200 km/h

• Sertifikalar: CE, FCC, IC​

🧰 Software and Management

• Operating System: airOS 8

• Supported Modes: Access Point (AP), Client, Client Router (WISP)

• Management Radio: Wi-Fi management radio in the 2.4 GHz band

• IPv6 Support: Yes (in bridge mode)

• Default IP Address: 192.168.1.20

• Default Login Information: Username:ubntPassword:ubnt​

📦 Package Contents

• LiteBeam 5AC LR device

• Assembly apparatus

• 24V, 0.3A Gigabit PoE adapter

• Power cable​
