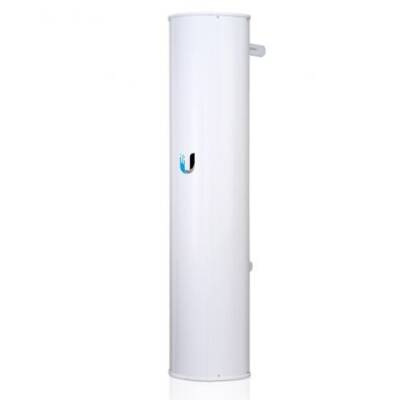

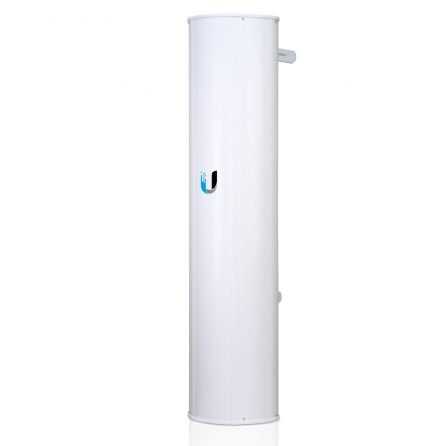

AP-5AC-90-HD

📝 Overview

• Operating in the 5 GHz band,High-density PtMPdesigned for applications3×30° sector antenna.

• Genellikle Rocket5ac Prismis used together with.

• It provides three independent 30° beams in a single body.

⚙️ Technical Specifications

• Frequency Range:5.15 – 5.85 GHz

• Gain:22 dBi

• Beam Width:3 × 30° (HPOL/VPOL), Elevation ≈ 8°

• Polarizasyon:Dual-linear (bilinear)

• VSWR:Max. 1.75:1

• Electrical Downtilt: 2°

• Bağlantılar:6 × RP-SMA (weatherproof)

📐 Physical Properties

• Boyutlar:322.6 × 201.5 × 1300 mm

• Ağırlık:~13.1 kg

• Dayanıklılık:Wind resistant up to 200 km/h wind speed.

• Wind Load:534 N @ 200 km/h

🔌 Compatibility

• Rocket®5ac Prism (3 pieces)

• Rocket AC PtMP

• airPrism / airMAX AC ecosystem

🛠️ Installation Notes

• From a single point, thanks to three independent 30° beams.3-sector distribution yapılabilir.

• Channel offset and DFS rules are critical in planning.

• Montajda tower robust against high wind loadThe selection must be made.

• Waterproofing measures should be taken in cables and connectors.

👥 Usage Area

• High densityWISP deployments

• From a single towermultiple customer premises equipment (CPE) yönetimi

• City and countrysidePtMP (Point-to-MultiPoint) çözümleri
