AM-5G20-90

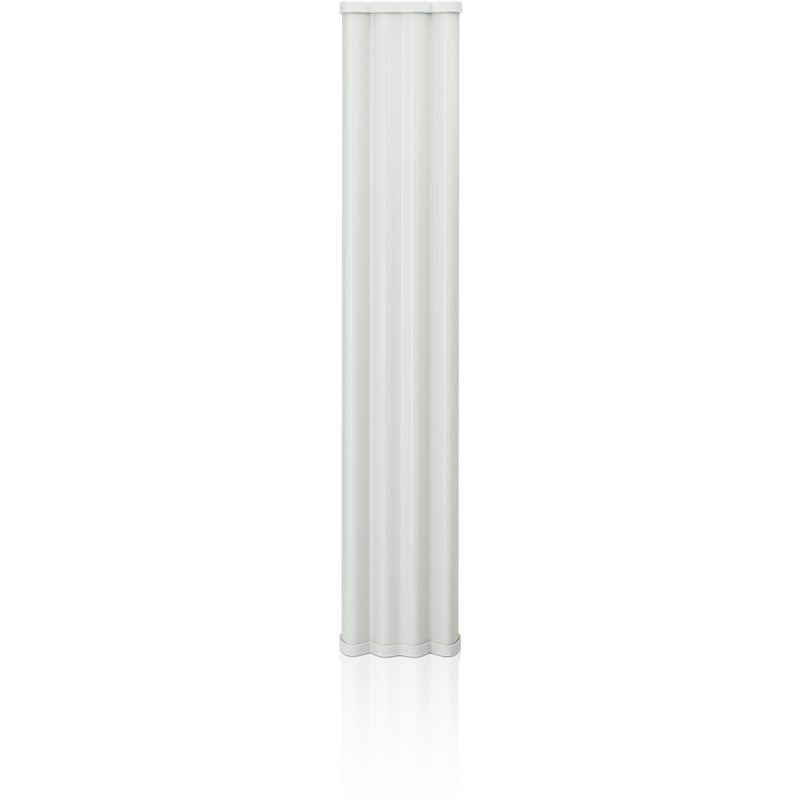

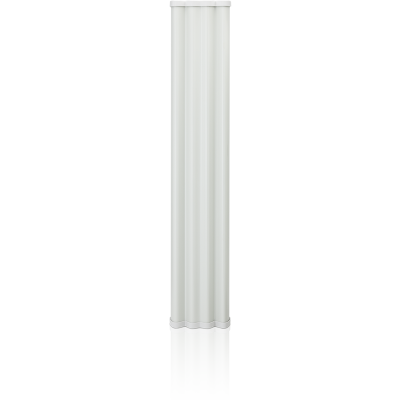

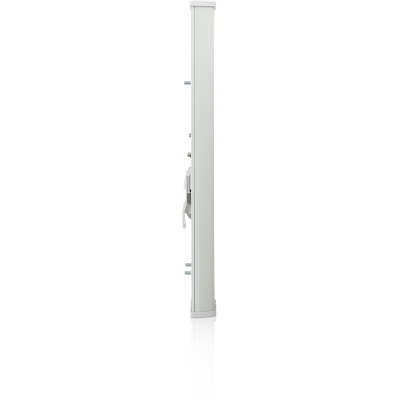

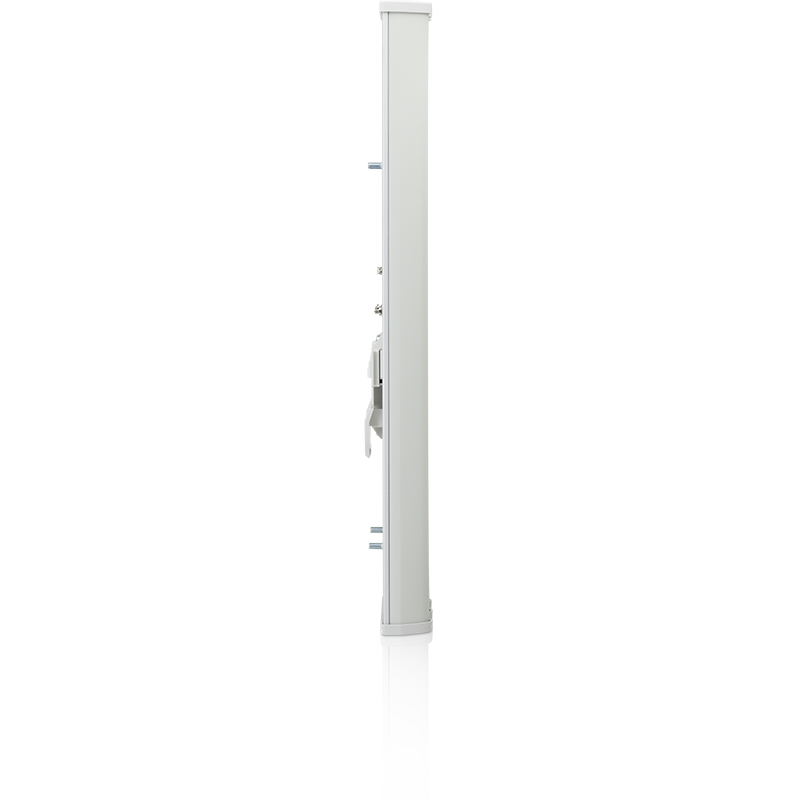

📡 AM-5G20-90 – 5GHz 20dBi 90° Sector Antenna

Ubiquiti AM-5G20-90, featuring airMAX technology, operating in the 5 GHz frequency band, with 20 dBi gain and a 90° broadcast angleDirectional sectoral antennaIt offers high capacity, long range, and strong performance in point-to-multipoint (PtMP) wireless network installations. It is ideal for WISP installations and professional network solutions.

🔌 Connection & Compliance

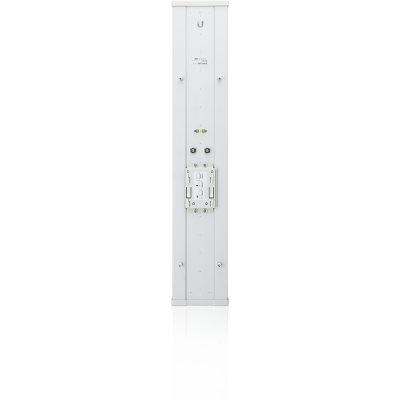

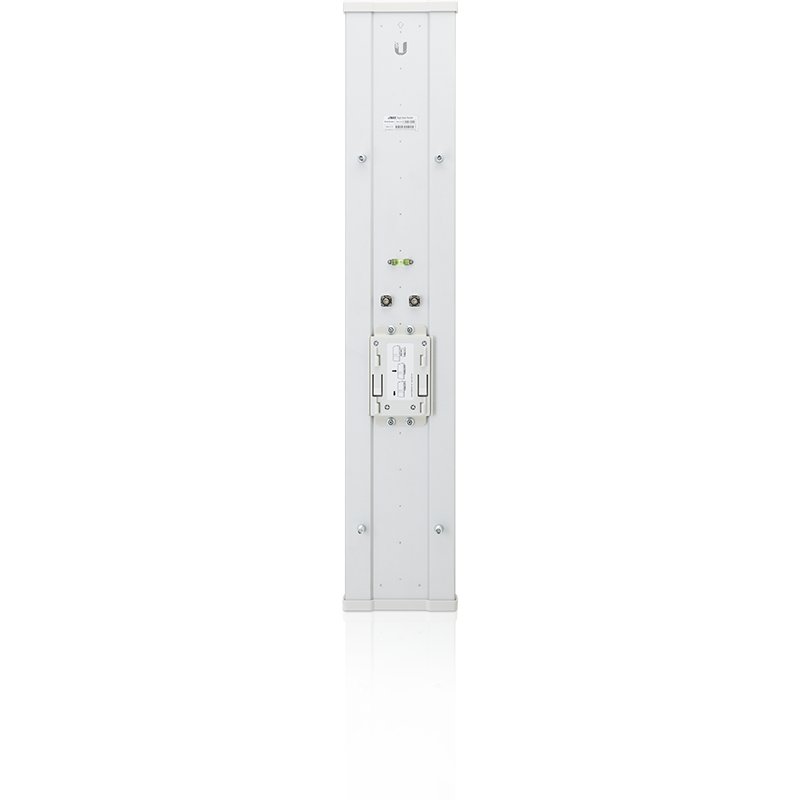

• RF Connector: 2 × RP-SMA Female

• Compatible Devices: Rocket M5 and airMAX BaseStation series.

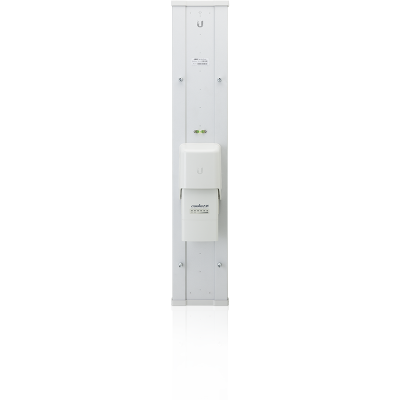

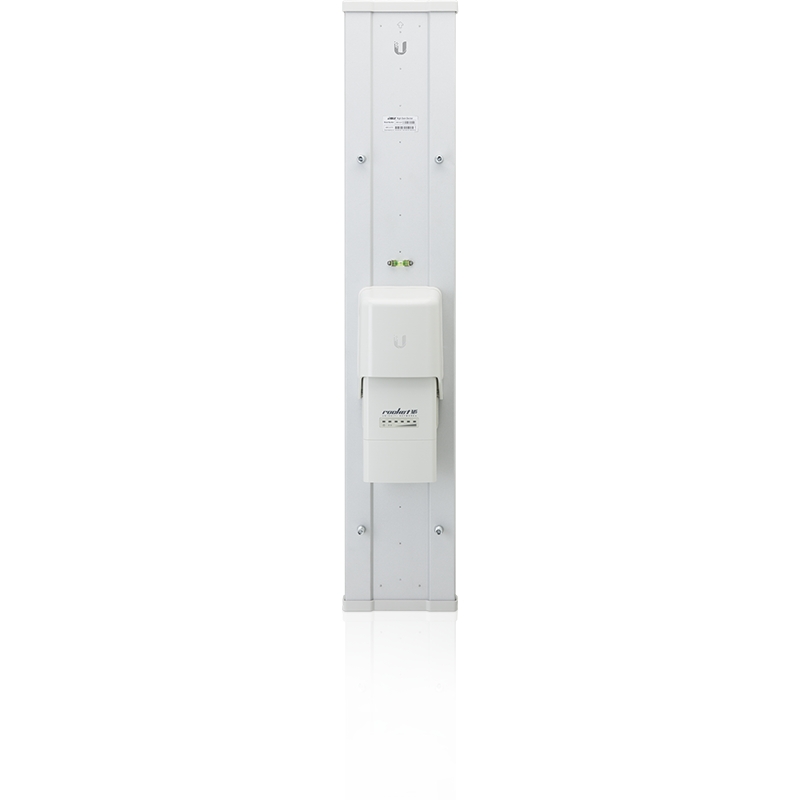

• Assembly: Designed to work integrated with Rocket devices.

📡 Wireless Features

• Frequency Range: 5.15 – 5.85 GHz

• Antenna Gain: 20 dBi

• Horizontal Spread Angle: 90°

• Vertical Beamwidth: 7°

• Polarization: Dual-linear

• VSWR: ≤ 1.5:1 (high signal quality)

⚙️ Physical Properties

• Dimensions: 700 × 145 × 79 mm

• Weight: 2.1 kg

• Material: UV resistant outer casing

• Wind Resistance: Maximum 200 km/h

🌦️ Durability & Environmental Conditions

• Weather-resistant structure

• Operating Temperature: -40°C ~ +80°C

• Humidity Resistance: 5% ~ 95% (non-condensing)

🛠️ Areas of Use

• Point-to-multipoint (PtMP) connections

• WISP base stations

• Campus, farm, and multi-device network deployment

• Long-range, wide-angle broadcasting needs

📦 Package Contents

• AM-5G20-90 Sectoral Antenna

• Direct mounting accessories

• RF cables

• User manual
