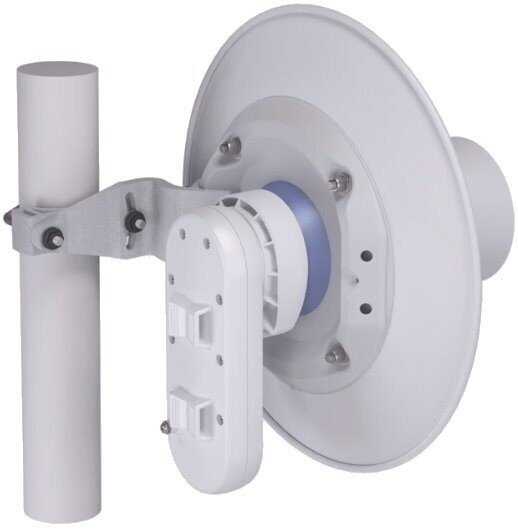

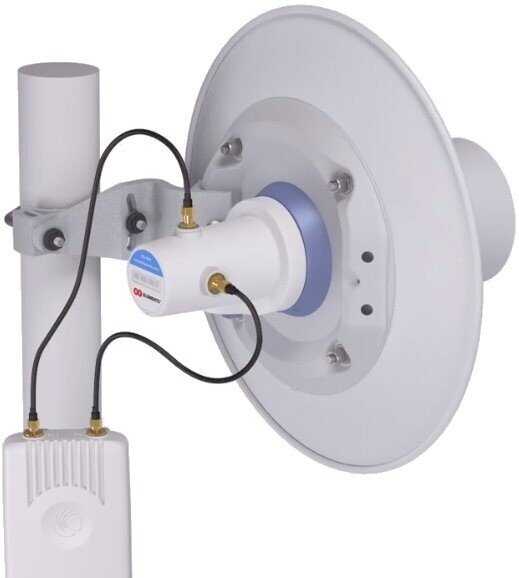

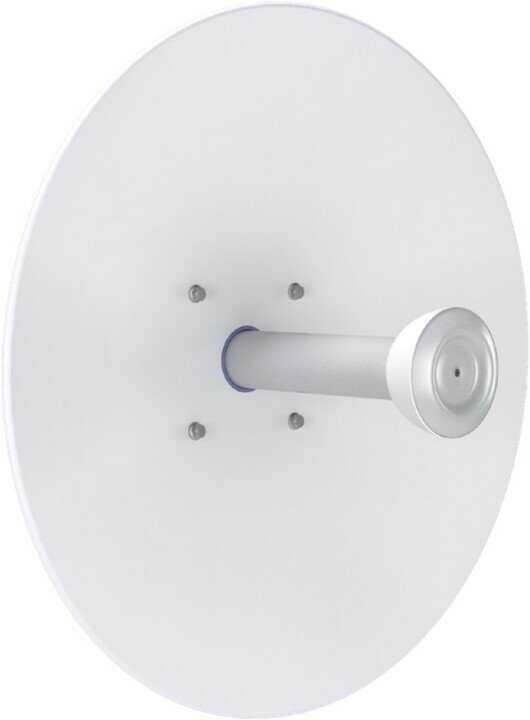

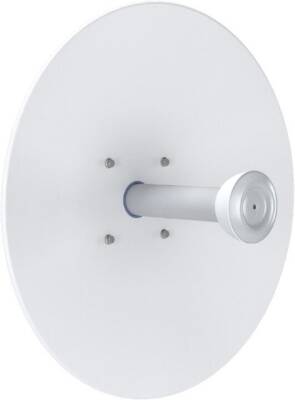

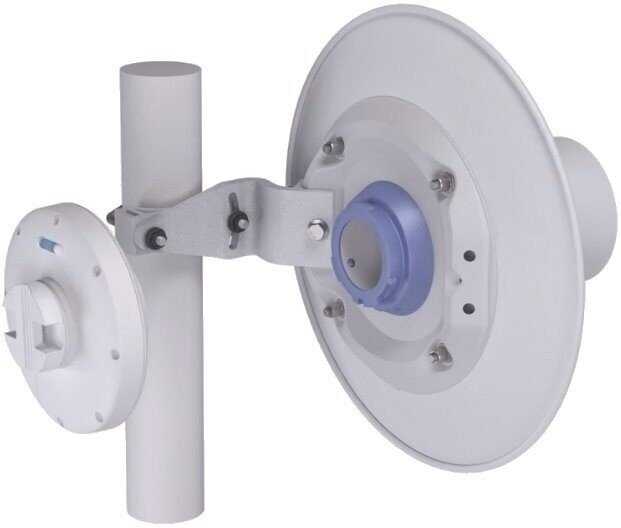

STD-27-UMa high-performance manufactured by RF ElementsStarterDish™ 27 UMIt is a parabolic antenna model. This antenna is specifically designed for long-distance and high-capacity connections.
Frequency Range: 5150 – 5950 MHz
Kazanç: 27 dBi
Beam Width (-3 dB): Horizontal and Vertical 6°
Beam Width (-6 dB): Horizontal and Vertical 8°
Polarizasyon: Bilinear (Horizontal and Vertical)
Empedans: 50 Ohm
VSWR (Maximum)1.8
Front to Back Ratio: 42 dB
Radio Connection: Waveguide Port
Malzeme: UV resistant ABS plastic and aluminum
Environmental Protection ClassIP65
Compatibility of Assembly Rod Diameter: 20–55 mm
Operating Temperature: Between –35°C and +55°C
Wind Resistance: 160 km
High Gain: 27 dBi gain provides strong signal transmission over long distances.
Narrow Beam Width: A 6° narrow beam width reduces interference and provides targeted communication.
Durable Design: It is resistant to harsh weather conditions thanks to its IP65 protection class and robust material structure.
Uyumluluk: It offers flexible usage through a waveguide connection compatible with various radio devices.
