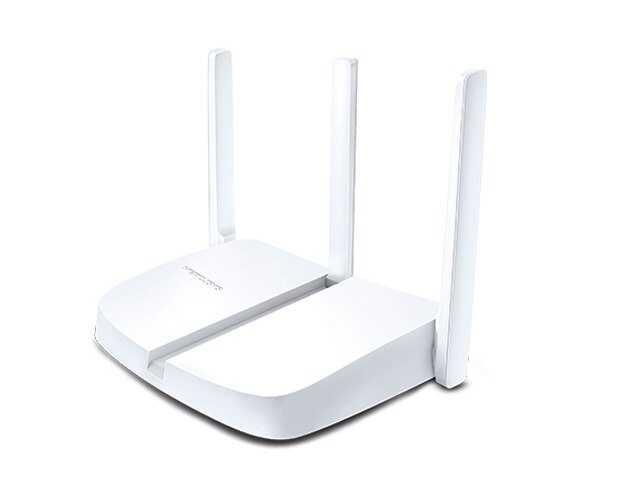

Mercusys MW305R, is a router designed for home and small office use, offering wireless speeds up to 300 Mbps in the 2.4 GHz band. With its three fixed 5 dBi antennas, it provides wide coverage and strong signal transmission.
Wireless StandardsIEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency Band2.4 GHz (2.4 - 2.4835 GHz)
Maximum Wireless Speed:
802.11n: 300 Mbps
802.11g: 54 Mbps
802.11b: 11 Mbps
Antenler: 3 x 5 dBi fixed omni-directional antenna
Ethernet Ports:
3 x 10/100 Mbps LAN
1 x 10/100 Mbps WAN
Security ProtocolsWPA-PSK, WPA2-PSK, 64/128/152-bit WEP
Management Features:
DHCP server
Port Forwarding (Virtual Server, UPnP, DMZ)
Access control (MAC/IP filtering)
Parental Control
Guest Network
WDS BridgingYes
Dynamic DNS SupportDynDNS, NO-IP
WPS SupportYes
Power Supply5V DC, 0.6A
Boyutlar169 x 116 x 35 mm
Operating Temperature0°C to 40°C
Storage Temperature-40°C to 70°C
Operating Humidity Ratio: 10% - 90% (non-condensing)
Storage Humidity Rate: 5% - 90% (non-condensing)
The Mercusys MW305R can be easily set up and managed through a user-friendly web interface. Internet connection can be quickly established with three-step setup instructions. Additionally, the WPS button on the back panel allows for secure wireless device connection setup.
Wide Coverage AreaThree 5 dBi antennas increase signal strength, providing a wider coverage area.
High Speed Connection: Up to 300 Mbps wireless speed support, ideal for HD video streaming and online games.
Advanced SecurityIt provides a secure internet experience with WPA/WPA2 encryption and guest network features.
Easy InstallationInstallation can be done without technical knowledge thanks to the user-friendly interface and quick setup wizard.
