CCR1036-12G-4S-EM

MikroTik CCR1036-12G-4S-EM, is an industrial-grade router designed for network infrastructures requiring high performance. With its 36-core processor and 8 GB RAM capacity, it offers high speed and efficiency in large-scale networks.

🔧 Technical Specifications

• İşlemci: Tilera TILE-Gx36, 36 cores, 1.2 GHz frequency

• RAM: 8 GB DDR3

• Depolama: 1 GB NAND

• Operating System: RouterOS v6 (64-bit), Level 6 license

• Boyutlar: 443 x 193 x 44 mm (1U rackmount)

• Operating Temperature: -20°C to +60°C

• Maximum Power Consumption60 W

• Soğutma: 2 x internal fan (active cooling)

🌐 Network and Connection Properties

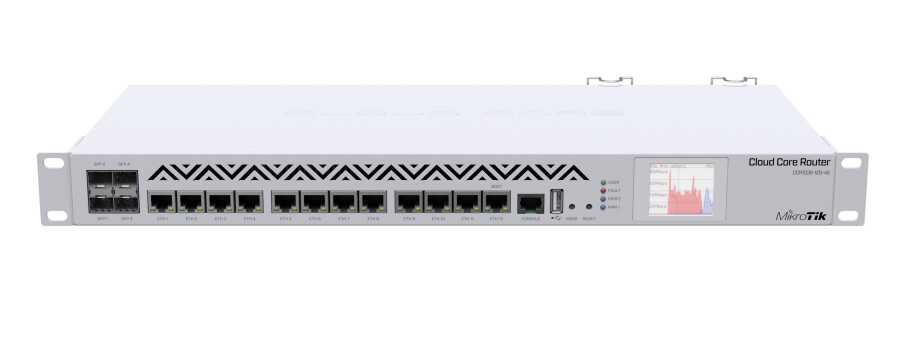

• Ethernet Ports: 12 x 10/100/1000 Mbps Gigabit Ethernet (Auto-MDI/X)

• SFP Slots: 4 x 1.25 Gbps SFP slot

• USB: 1 x USB Type A (maximum 1A current), USB Power Reset feature

• M.2 Slot: 1 x PCIe NVMe M.2 2280mm M key SSD slot (max. 1 TB)

• Console Port: RJ45 serial port

• LCD Screen: Colorful touch screen

⚡ Power and Cooling Features

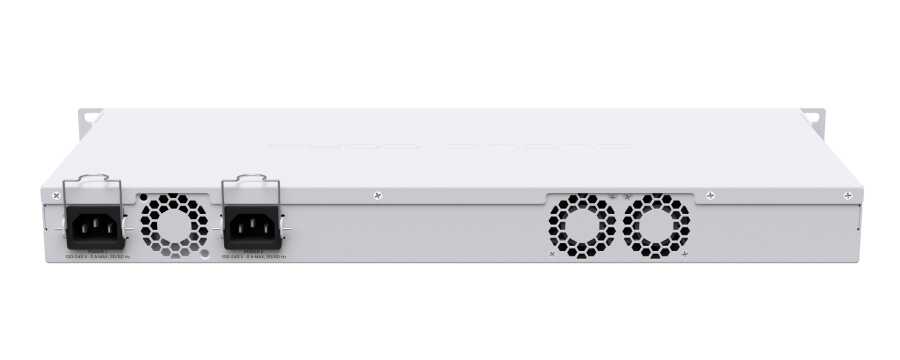

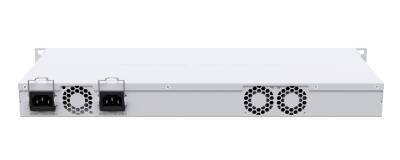

• Power Input: 2 x AC input (100-240V, redundant power supplies)

• Soğutma: 2 x internal fan (active cooling)

📈 Performance Data

• Maximum Packet Processing in FastPath Mode: 24 million packets/second (mpps)

• Maximum Bandwidth: 16 Gbps

• IPsec Performance:

  • Single Tunnel (AES-128-CBC + SHA1): ~1.46 Gbps

  • 256 Tunnel (AES-128-CBC + SHA1): ~10.22 Gbps

  • 256 Tunnel (AES-256-CBC + SHA256): ~9.99 Gbps

📦 Box Contents

• CCR1036-12G-4S-EM device

• 2 x IEC power cable

• Rack mounting ears and screw set

• Quick installation guide
